SPOT / POLI-MT TYPE Pneumatic Strapping Tool for PP/PET
- Home |
- Products List |
- POLI-MT TYPE

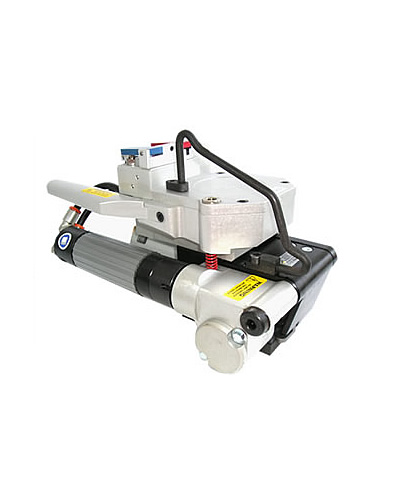

POLI-MT TYPE / Pneumatic Strapping Tool for PP/PET
* MT (Middle Tension) * Compact Model, easy to use and versatile strapping tool. * Friction weld system (Sealless) * Pneumatic Drive |
Technical Specification
Model | POLI-MT TYPE |
---|---|
Strap Quality | PP / PET |
Package Type | flat / round (min. 700mm / Diameter) |
Strap Width | 13 - 19mm |
Strap Thickness | 0.6 - 1.27mm |
Max Tension | 3000N |
Max Tension Speed | 9m / minute |
Joining Method | Friction Weld Seal (Sealless) |
Machine Dimensions | L270mm × D130mm × H130mm |
Machine Weight | 5.2kg |
Air Pressure | 5.5-6.5bar (Max 7.0bar) |
Air Consumption | Max 12L/sec (For Welding / 14L/sec) |
* Specifications are subject to change for improvement advance notice.
How to VIDEO
* Japanese version only
